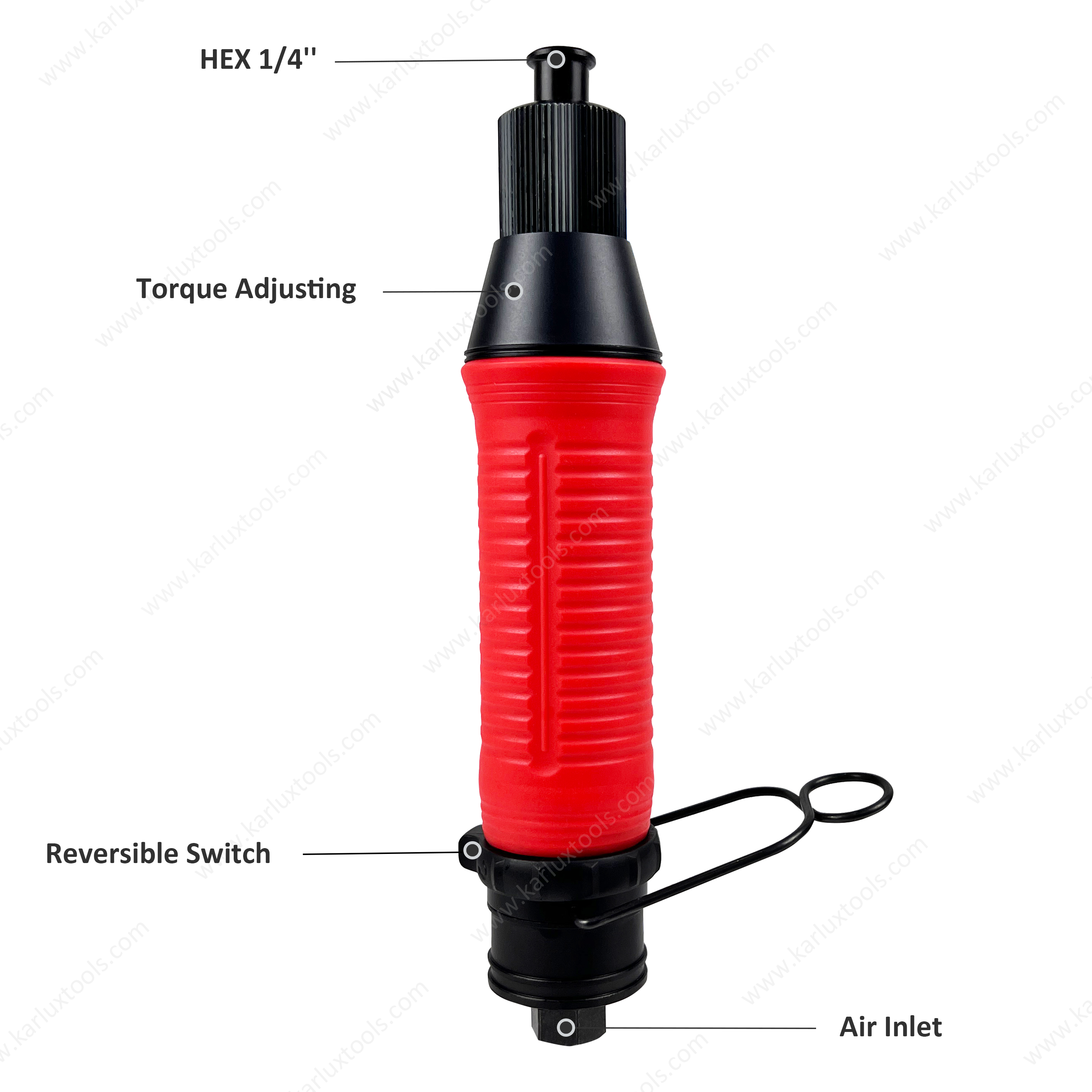

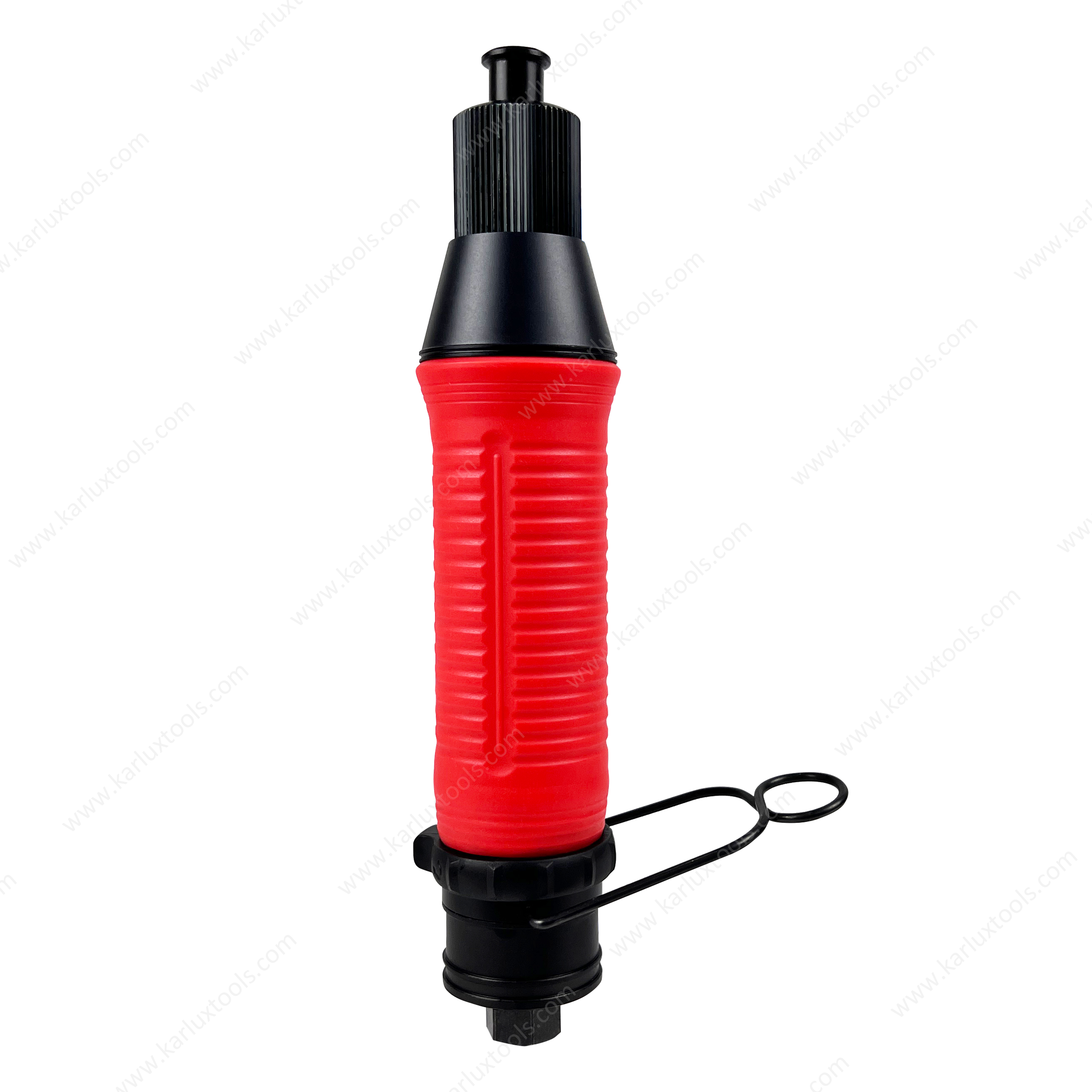

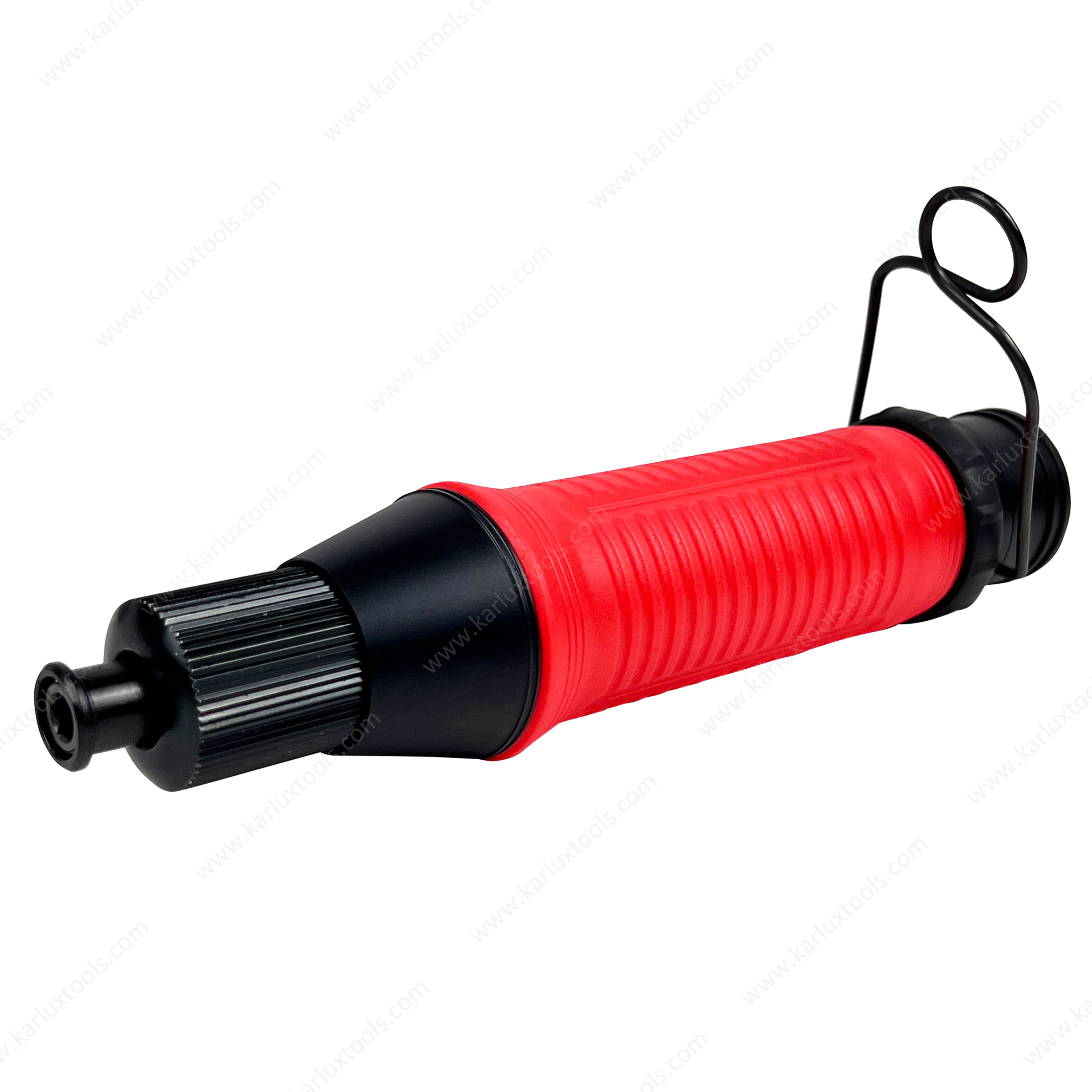

Push-Start HEX 1/4" Pneumatic Assembly Tool Reversible Screwdriver Straight Air Shut-Off Screwdriver

  • TQ48PB TQ50PB TQ55PB TQ60PB TQ65PB TQ68PB

Availability:
Quantity:
Inquire Add to Basket

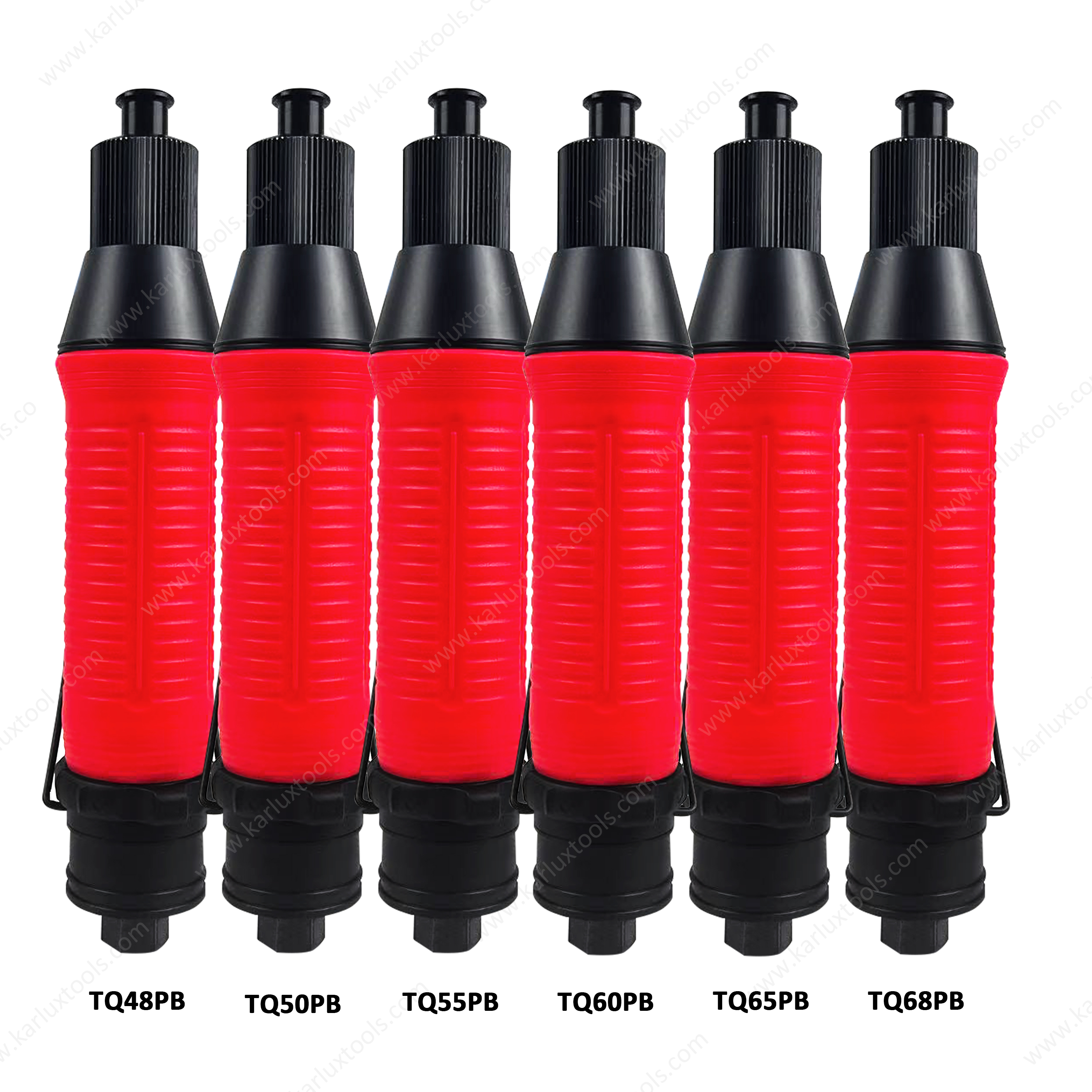

Model Number TQ48PB TQ50PB TQ55PB TQ60PB TQ65PB TQ68PB
Free Speed (rpm) 1700 1400 1000 550 300 250
Weight (g) 790 790 790 790 810 810
O.A.L (mm) 215 215 215 215 215 215
Diameter (mm) 39 39 39 39 39 39
Air Hose Bore (Air Inlet 6kg/cm²) (mm) 8 8 8 8 8 8
Air Consumption (m³/min) 0.55 0.55 0.55 0.55 0.55 0.55
Torque Range (kgf·cm) 5-45 7-50 7-65 15-95 30-180 50-280
Standard Deviation (%) ±3 ±3 ±3 ±3 ±3 ±3
Machine Screw Dia. M2.8-M5.8 M2.9-M6.0 M2.9-M6.4 M4.1-M7.0 M5.0-M9.3 M6.0-M11.0
Tapping Screw Dia. M2.2-M4.7 M2.6-M4.9 M2.6-M5.4 M3.1-M6.0 M4.0-M7.2 M4.9-M8.7
Air Pressure (Kg/cm²) 6 6 6 6 6 6
Noise Level (dBA) ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA
