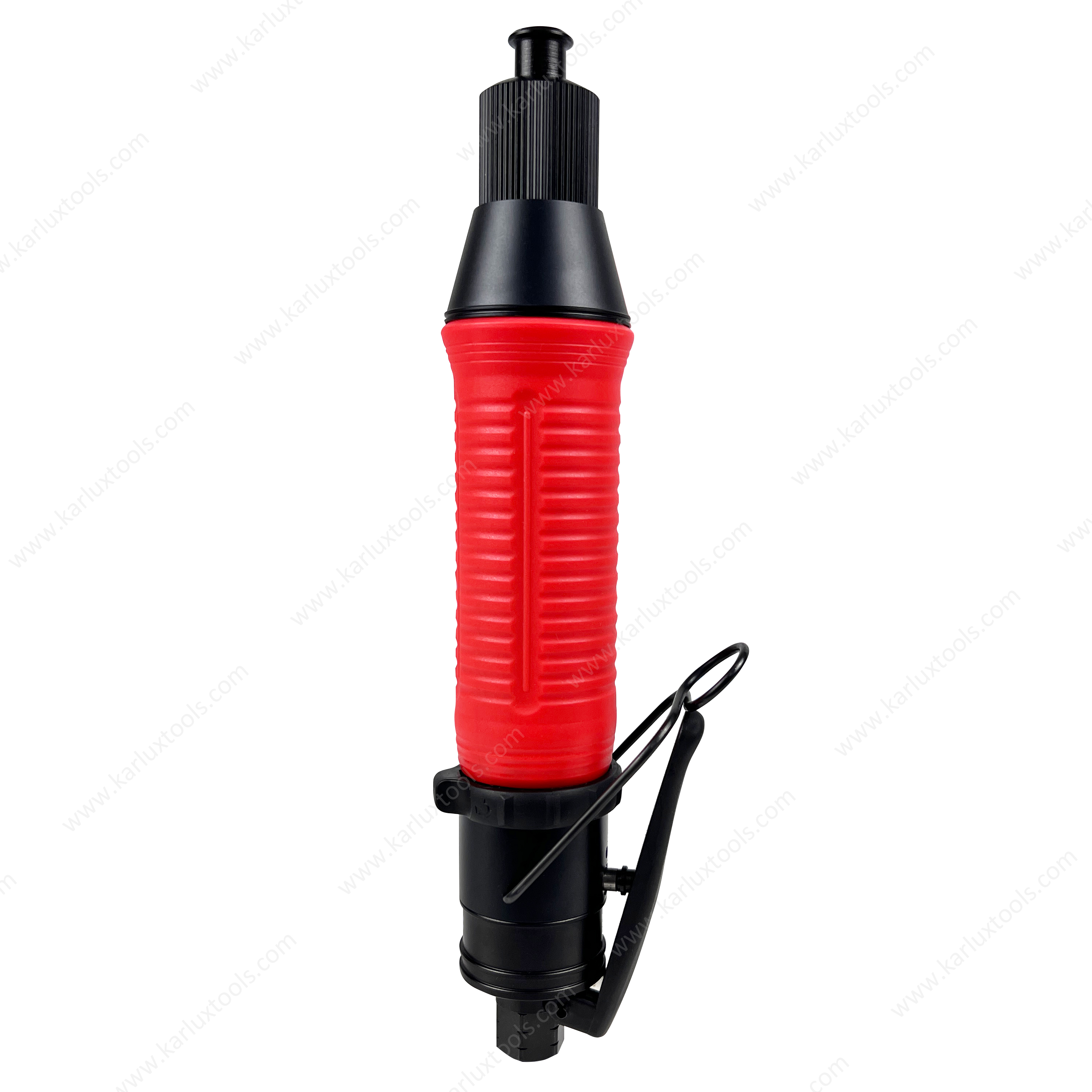

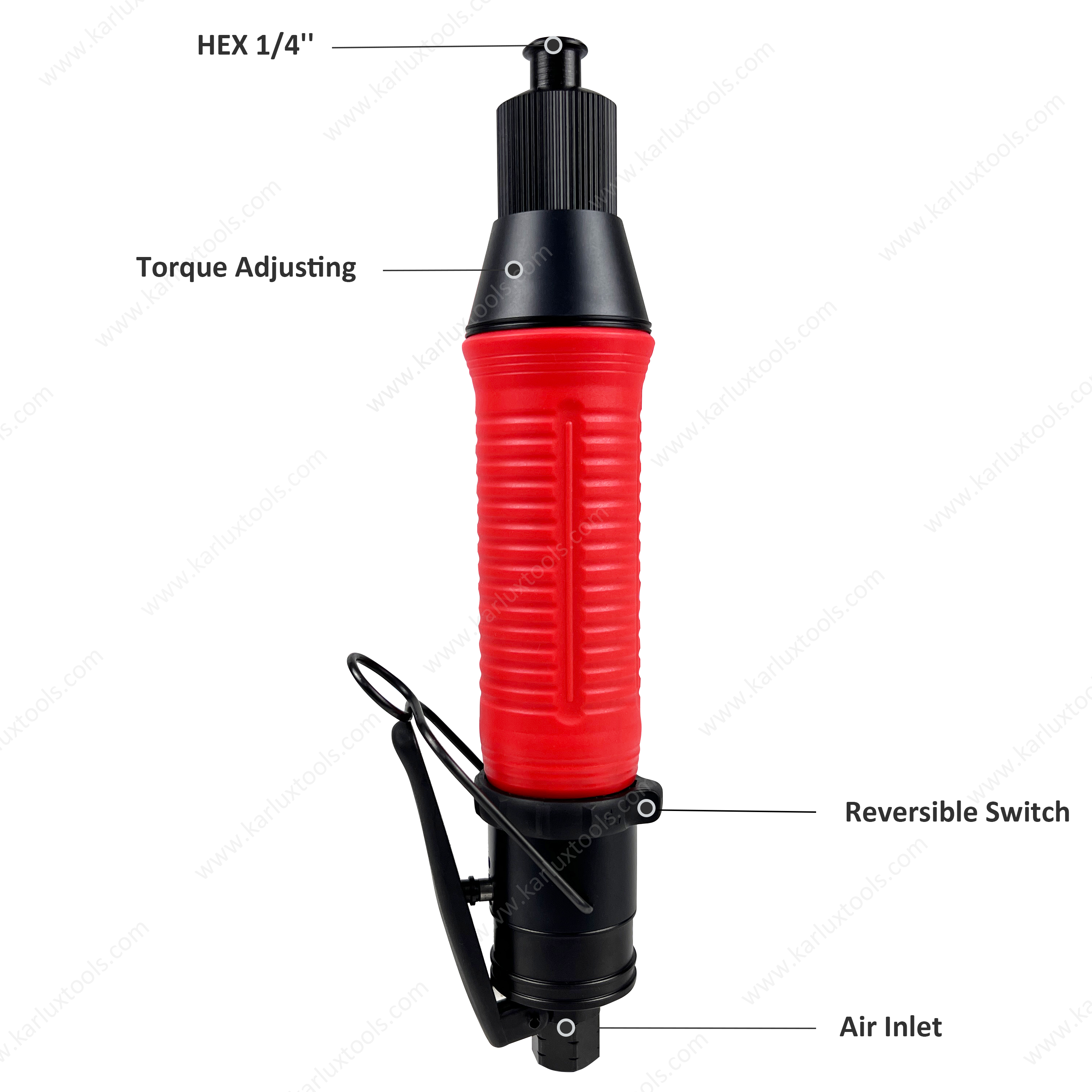

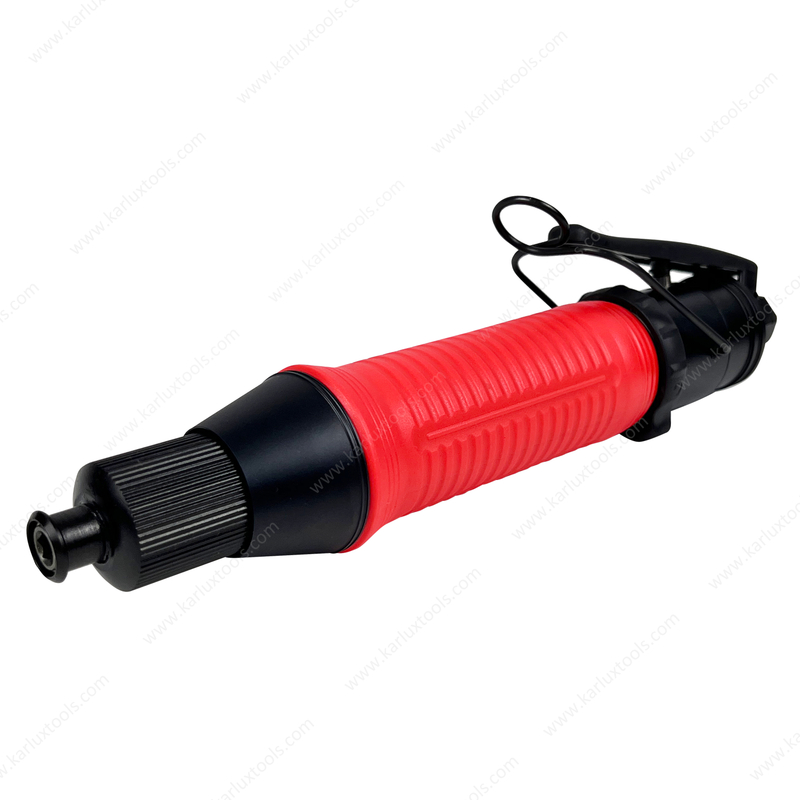

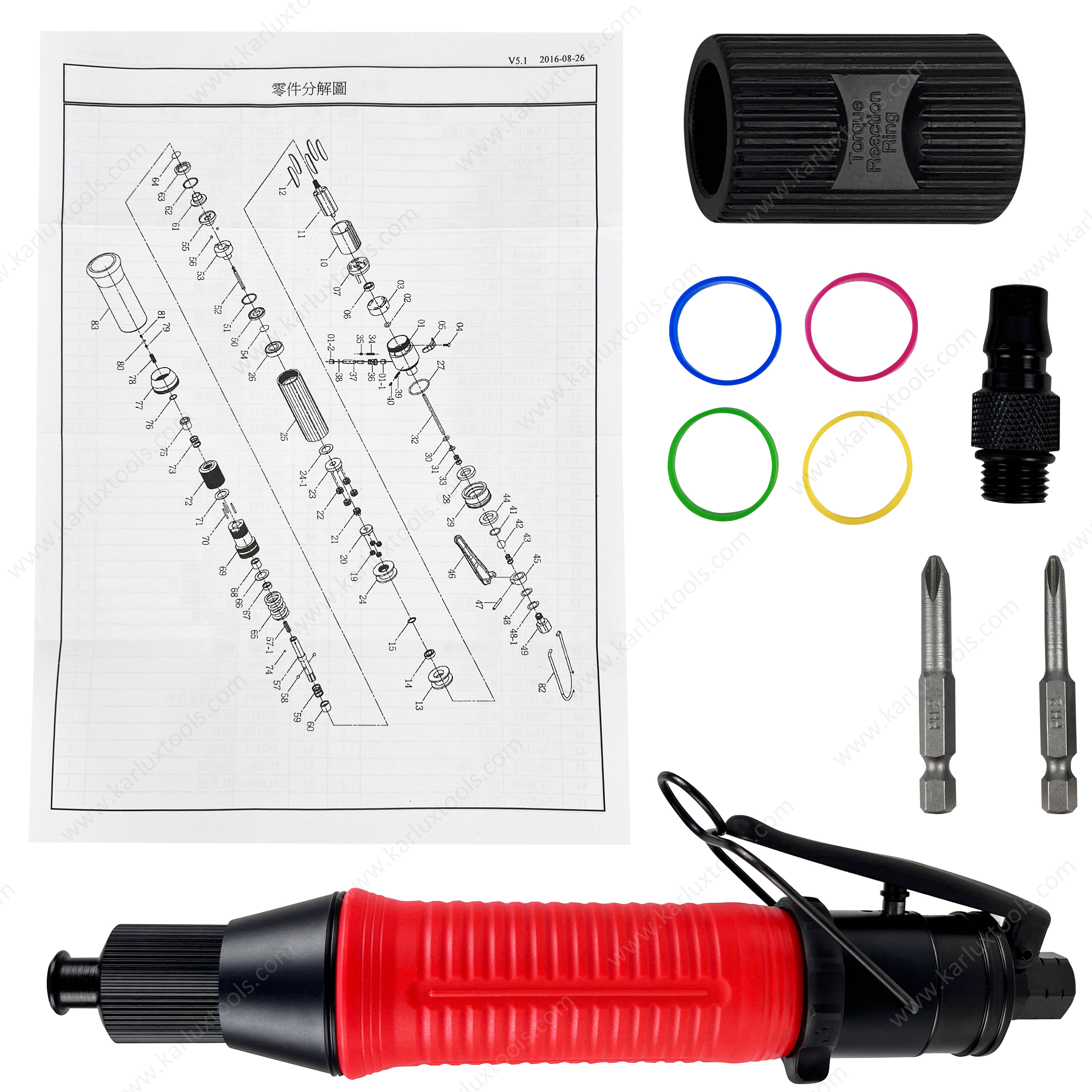

Lever Type HEX 1/4" Pneumatic Assembly Tool Reversible Screwdriver Straight Air Shut-Off Screwdriver

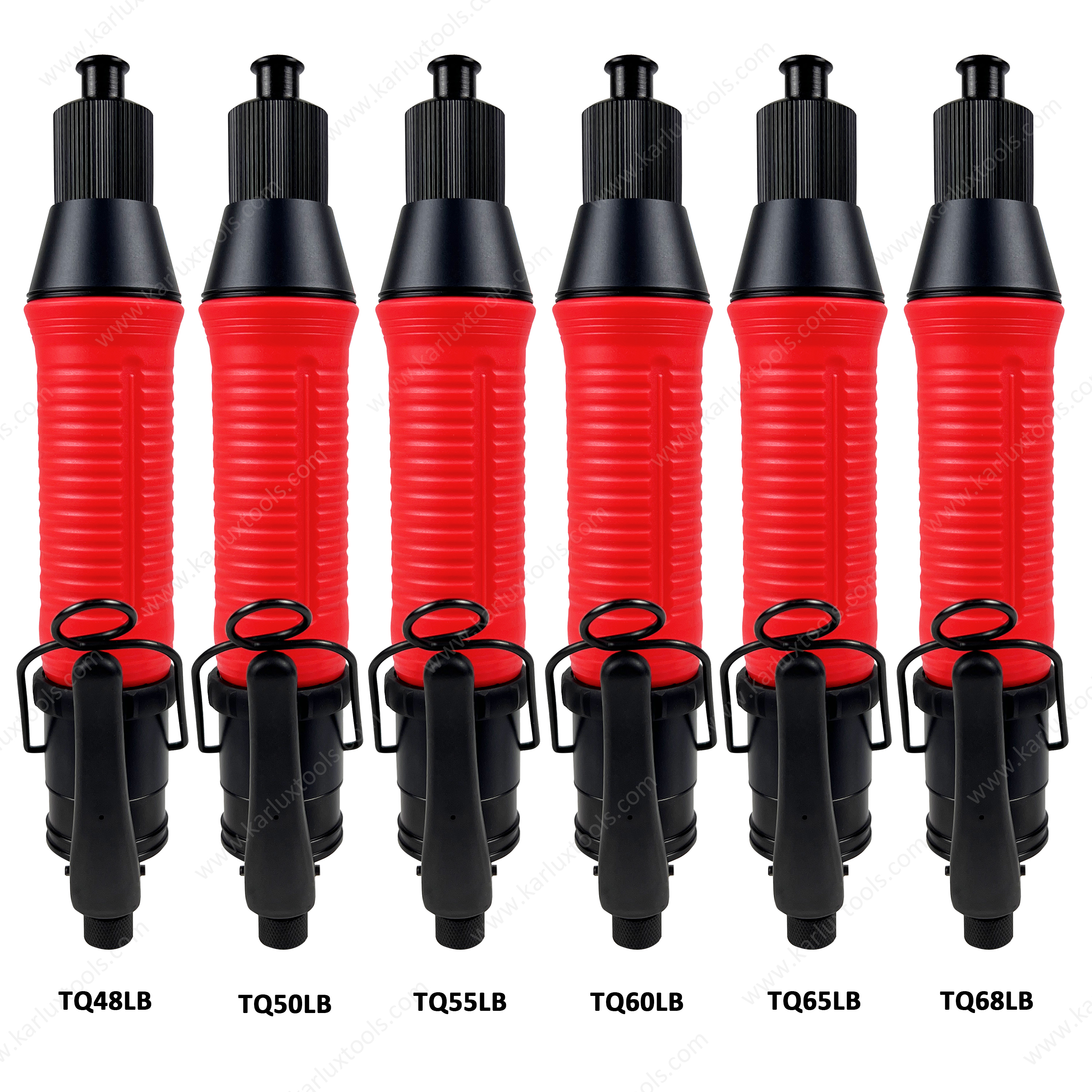

  • TQ48LB TQ50LB TQ55LB TQ60LB TQ65LB TQ68LB

Availability:
Quantity:
Inquire Add to Basket

Model Number TQ48LB TQ50LB TQ55LB TQ60LB TQ65LB TQ68LB
Free Speed (rpm) 1700 1400 1000 550 300 250
Weight (g) 820 820 820 820 820 820
O.A.L (mm) 245 245 245 245 245 245
Diameter (mm) 37 37 37 37 37 37
Air Hose Bore (Air Inlet 6kg/cm²) (mm) 8.0 8.0 8.0 8.0 8.0 8.0
Air Consumption (m³/min) 0.55 0.55 0.55 0.55 0.55 0.55

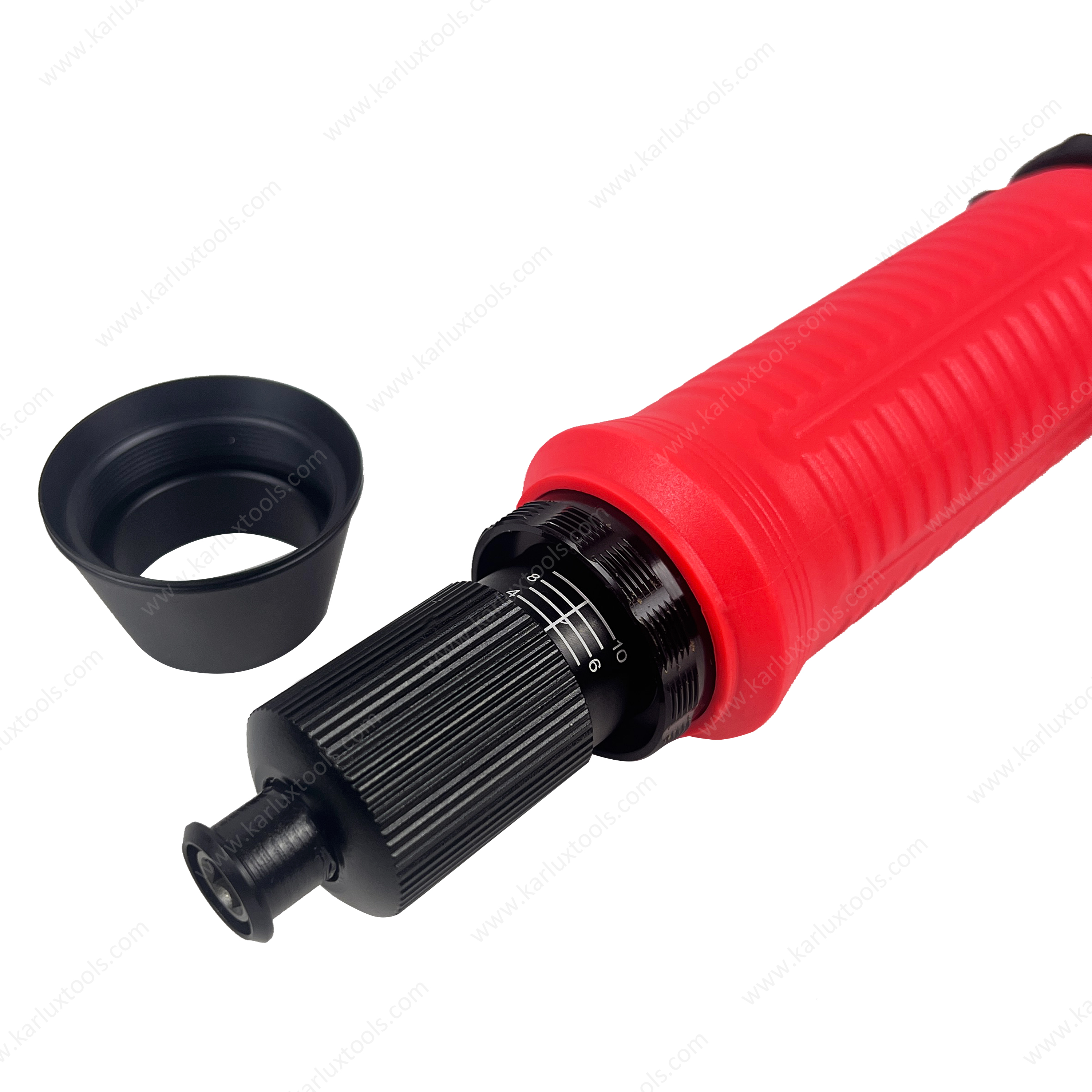

Torque Range (kgf·cm) 5-45 7-50 7-65 15-95 30-180 50-280
Standard Deviation (%) ±3 ±3 ±3 ±3 ±3 ±3
Machine Screw Dia. M2.8-M5.8 M2.9-M6.0 M2.9-M6.4 M4.1-M7.0 M5.0-M9.3 M6.0-M11.0
Tapping Screw Dia. M2.2-M4.7 M2.6-M4.9 M2.6-M5.4 M3.1-M6.0 M4.0-M7.2 M4.9-M8.7
Air Pressure (Kg/cm²) 6.0 6.0 6.0 6.0 6.0 6.0
Noise Level (dBA) ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA
