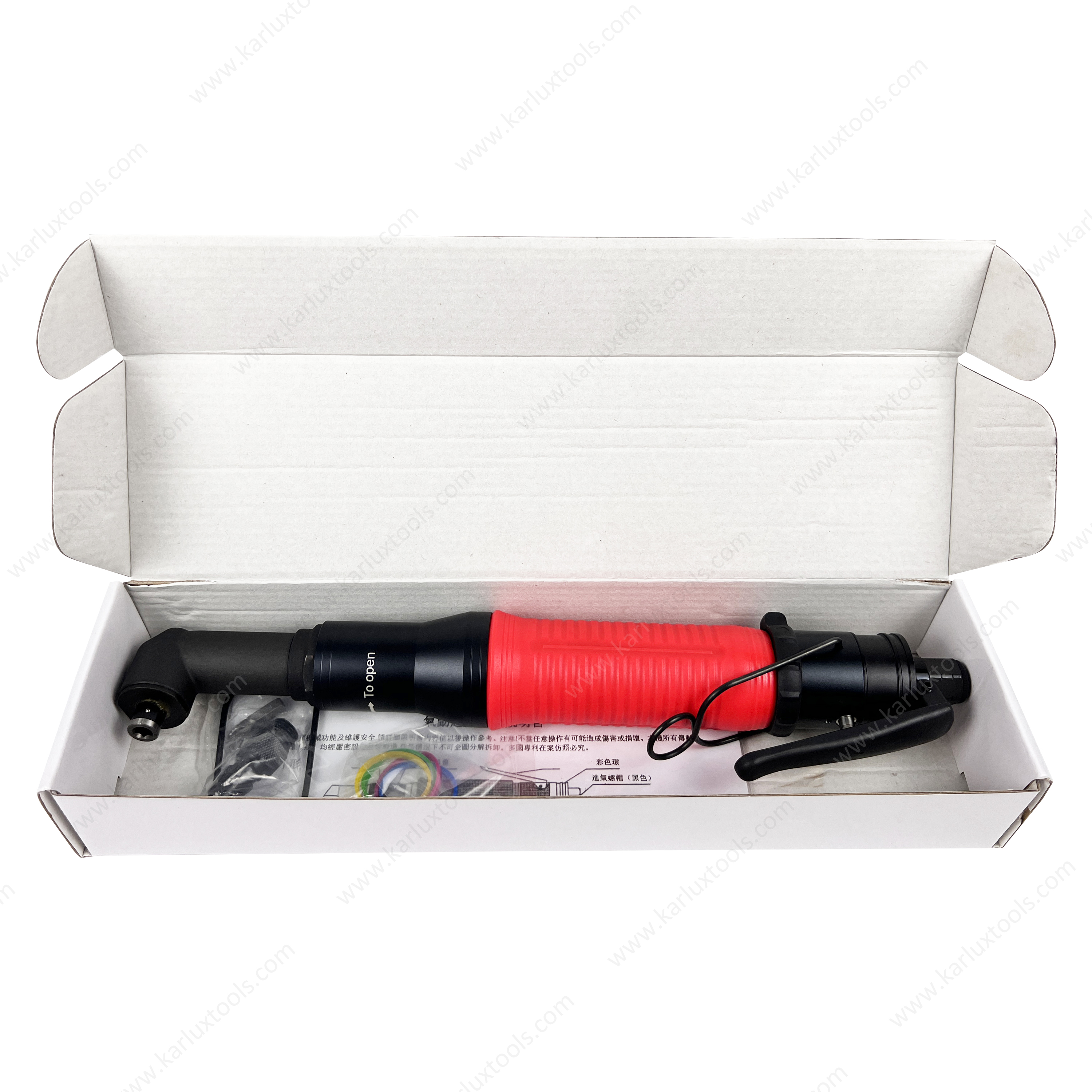

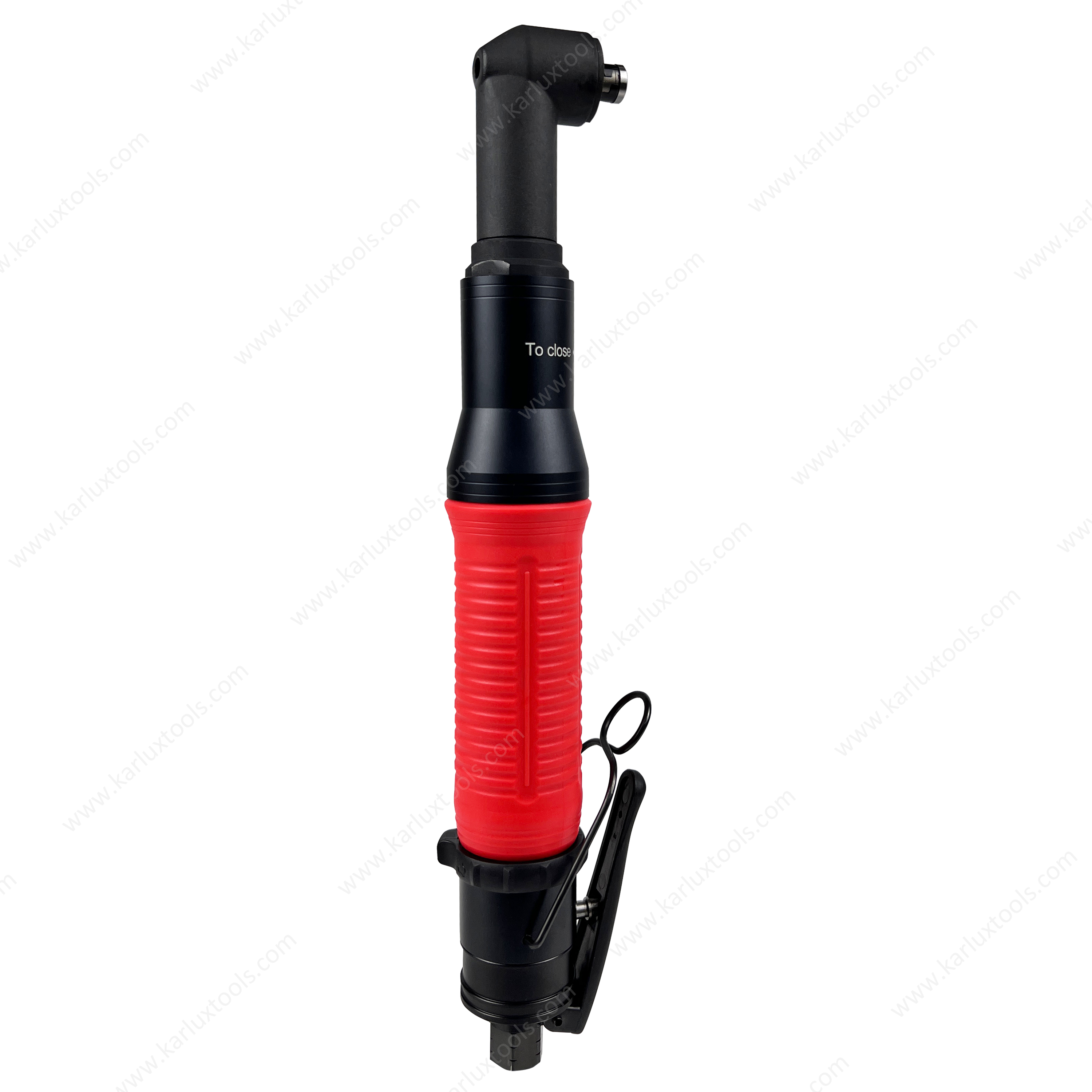

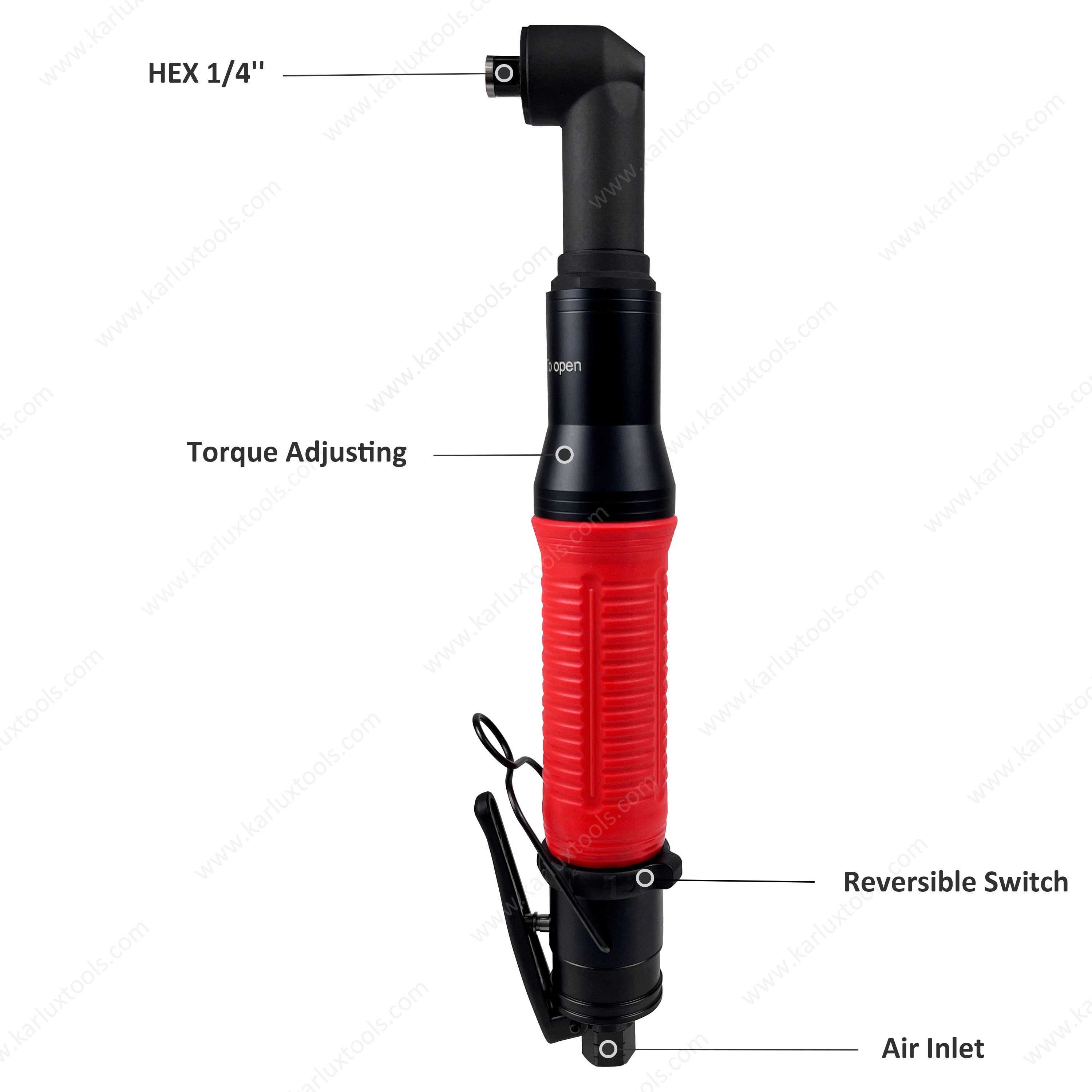

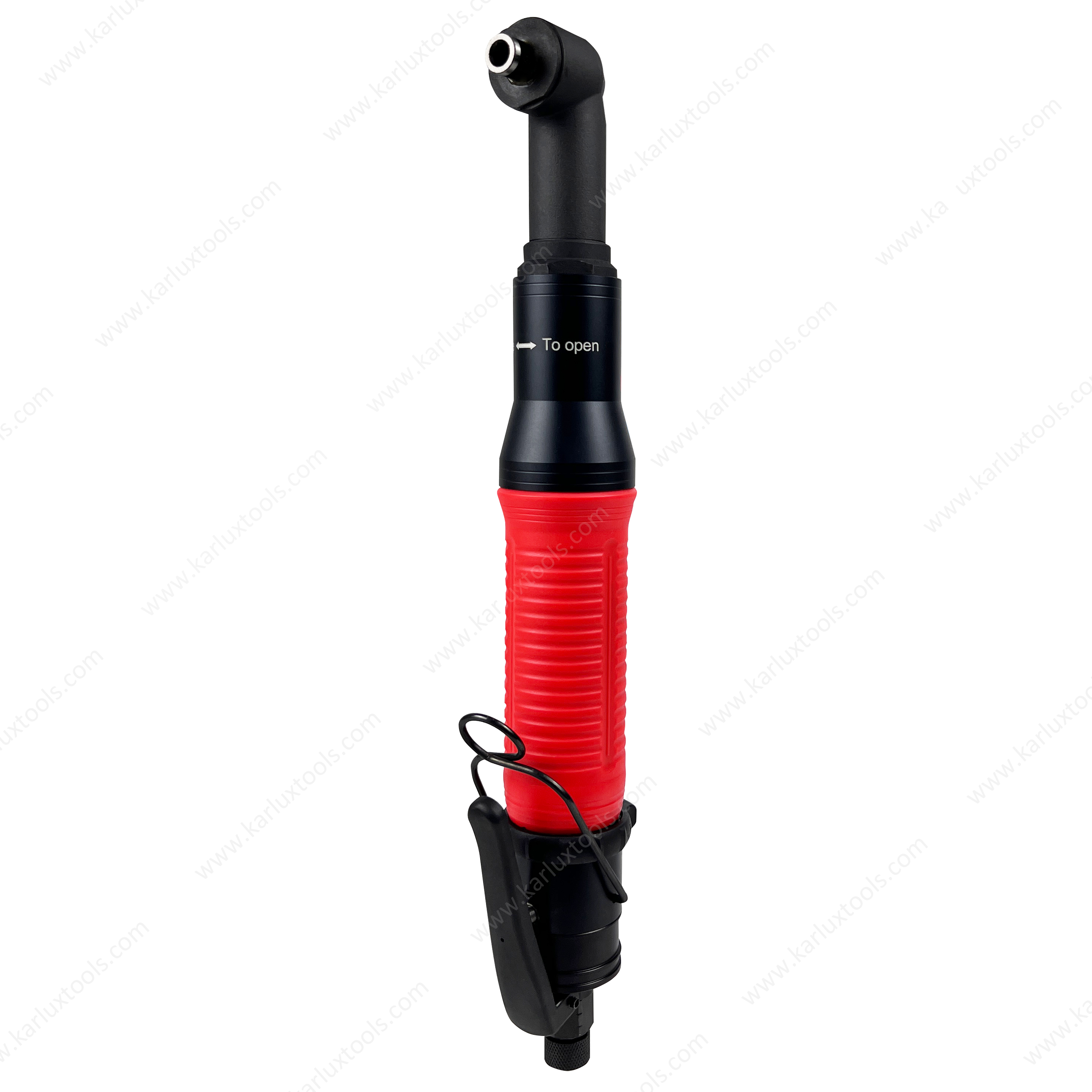

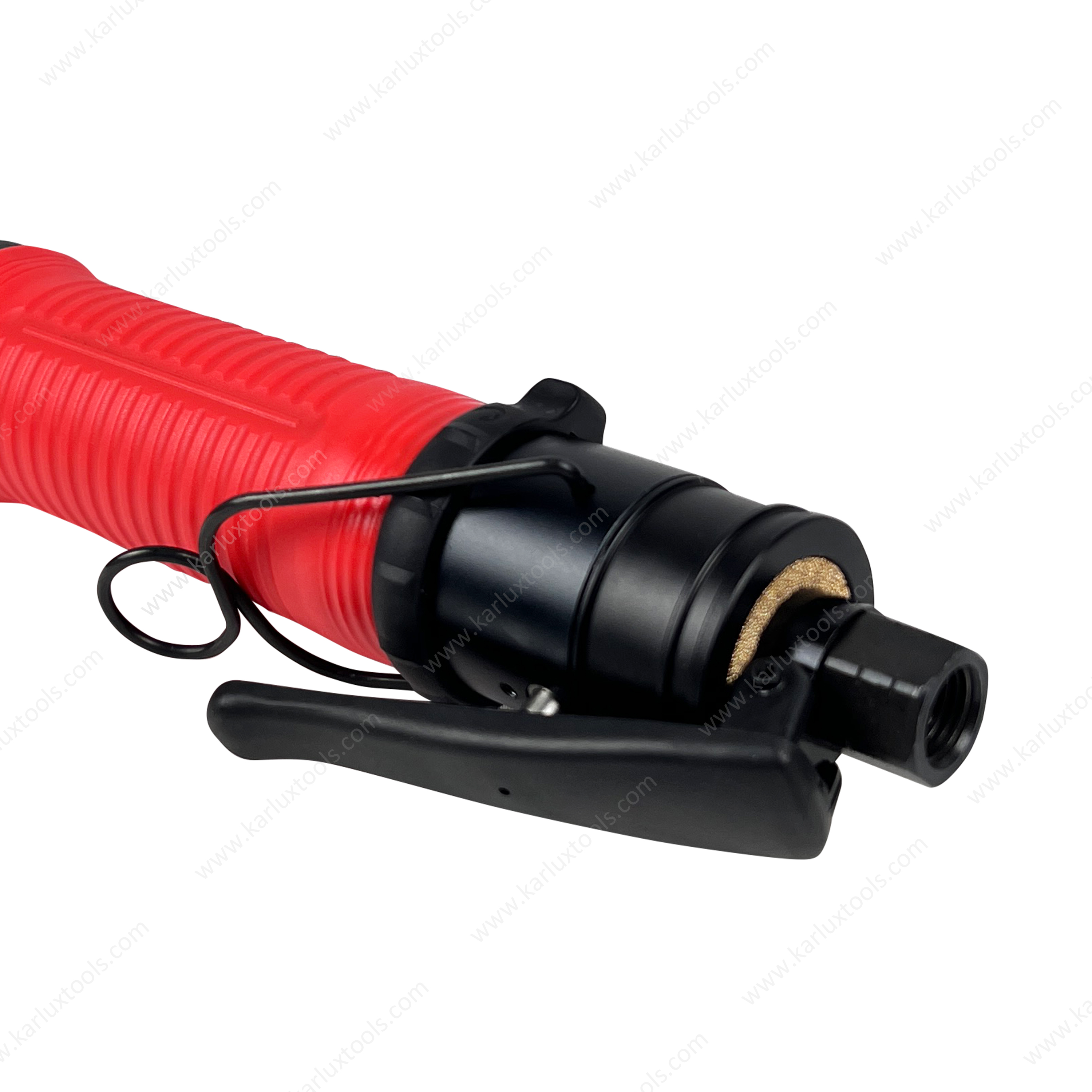

Angle Type HEX 1/4" Pneumatic Assembly Tool Reversible Screwdriver Air Shut-Off Screwdriver

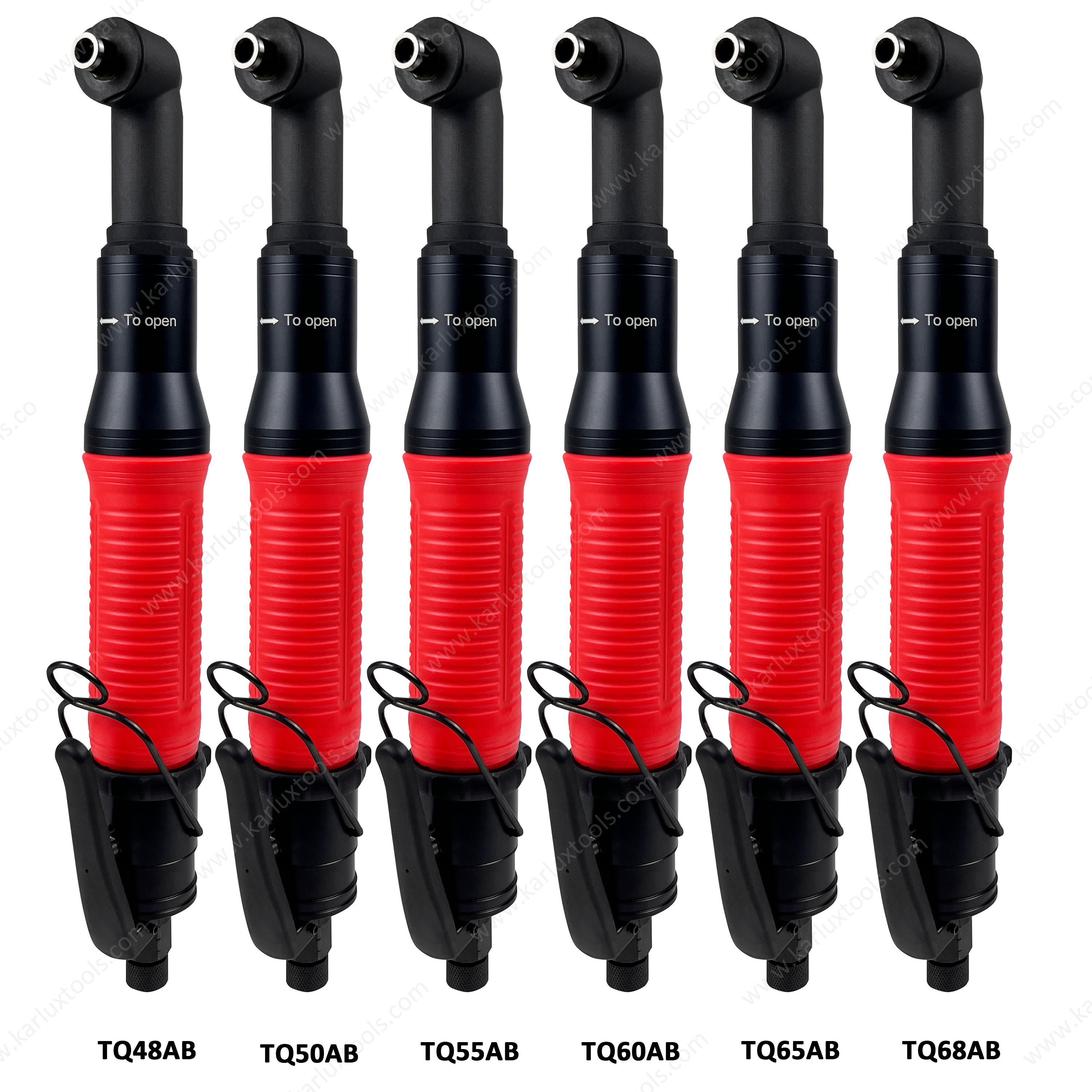

  • TQ48AB TQ50AB TQ55AB TQ60AB TQ65AB TQ68AB

Availability:
Quantity:
Inquire Add to Basket


Model Number TQ48AB TQ50AB TQ55AB TQ60AB TQ65AB TQ68AB
Free Speed (rpm) 1800 1400 1000 550 300 250
Weight (g) 1200 1200 1200 1100 1400 1400
O.A.L (mm) 345 345 345 345 345 345
Diameter (mm) 37 37 37 37 37 37
Air Hose Bore (Air Inlet 6kg/cm²) (mm) 8.0 8.0 8.0 8.0 8.0 8.0
Air Consumption (m³/min) 0.55 0.55 0.55 0.55 0.55 0.55
Torque Range (kgf·cm) 5-45 7-50 7-65 15-95 30-180 50-280
Standard Deviation (%) ±3 ±3 ±3 ±3 ±3 ±3
Machine Screw Dia. M2.8-M5.8 M2.9-M6.0 M2.9-M6.4 M4.1-M7.0 M5.0-M9.3 M6.0-M11.0
Tapping Screw Dia. M2.2-M4.7 M2.6-M4.9 M2.6-M5.4 M3.1-M6.0 M4.0-M7.2 M4.9-M8.7
Air Pressure (Kg/cm²) 6.0 6.0 6.0 6.0 6.0 6.0
Noise Level (dBA) ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA

12345(1)678910
