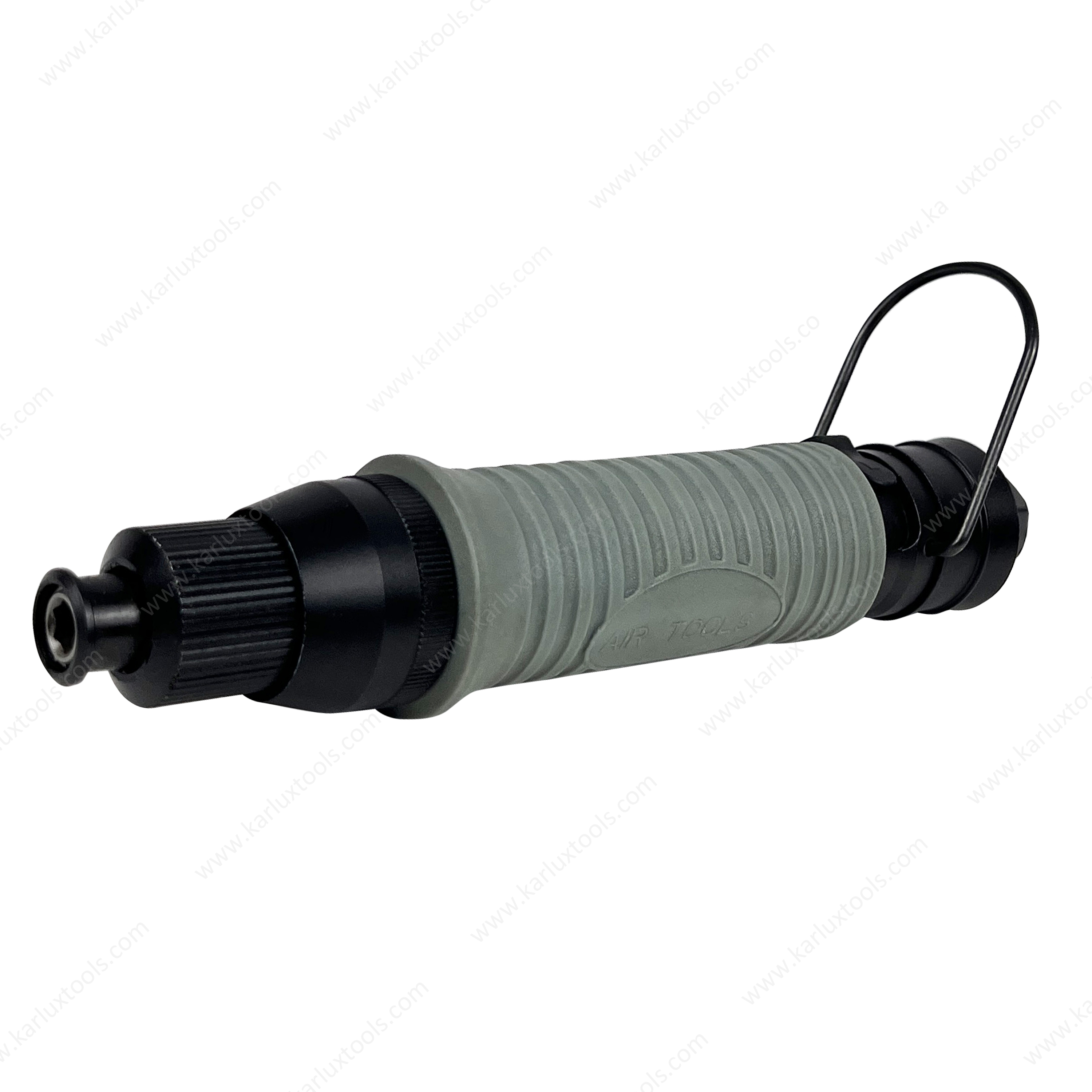

1000rpm Torque Range 1-8kgf·cm HEX 1/4" Pneumatic Assembly Tool Reversible Screwdriver Straight Air Shut-Off Screwdriver

  • TQ20PB

Availability:
Quantity:
Inquire Add to Basket


Model Number TQ10PB TQ20PB TQ30PB TQ35PB TQ38PB TQ40PB TQ45PB
Free Speed (rpm) 1000 1000 1800 2200 1800 1000 800
Weight (g) 480 480 480 480 480 480 480
O.A.L (mm) 180 180 180 180 180 180 180
Diameter (mm) 31 31 31 31 31 31 31
Air Hose Bore (Air Inlet 6kg/cm²) (mm) 5.0 5.0 5.0 5.0 5.0 5.0 6.35
Air Consumption (m³/min) 0.2 0.2 0.28 0.28 0.28 0.28 0.3
Torque Range (kgf·cm) 0.5-2 1-8 3-17 3-20 3-25 5-30 8-40
Standard Deviation (%) ±3 ±3 ±3 ±3 ±3 ±3 ±3
Machine Screw Dia. M1.0-M2.2 M1.7-M3.3 M2.2-M4.2 M2.2-M4.5 M2.2-M4.7 M2.8-M5.0 M3.3-M5.7
Tapping Screw Dia. M1.1-M1.7 M1.3-M2.7 M1.7-M3.2 M1.7-M3.5 M1.7-M3.8 M2.2-M4.0 M2.7-M4.4
Air Pressure (Kg/cm²) 6.0 6.0 6.0 6.0 6.0 6.0 6.0
Noise Level (dBA) ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA ±2dBA, 78dBA
